Caterpillar CAT M317D2

Used Caterpillar CAT M317D2 wheeled excavator — reference specifications, condition points and export notes for this model.

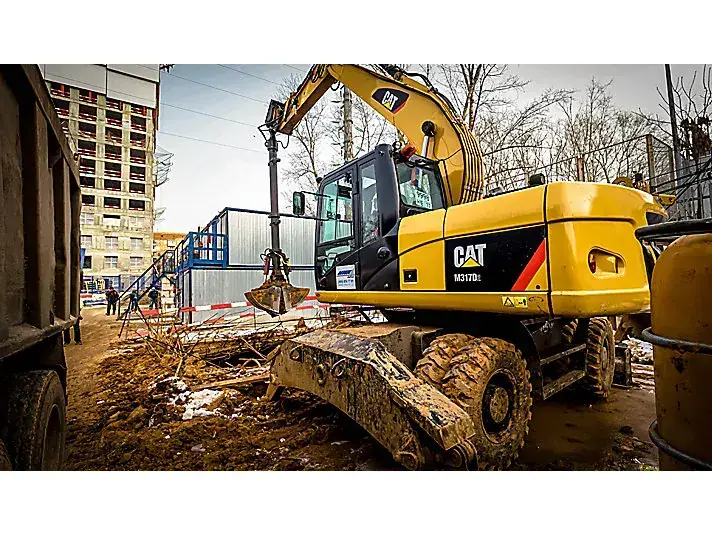

This Caterpillar CAT M317D2 is a wheeled digging excavator suited to mid-size earthmoving and trenching. It has an operating weight of 15300 to 17500 kg (33731 to 38581 lb), rated power of 101 kW, a Cat C4.4 engine, and maximum dig depth of 5690 mm.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Caterpillar CAT M317D2
Operating weight	15300 至 17500 kg （33731 至 38581 lb）
Rated power	101 kW
Engine	Cat C4.4
Max dig depth	5690 mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Caterpillar CAT M317D2

The Caterpillar CAT M317D2 is a wheeled digging excavator with an operating weight between 15,300 and 17,500 kg. It is powered by a Cat C4.4 engine rated at 101 kW and has a maximum dig depth of 5,690 mm. It is intended for excavation, trenching, and material handling on construction and utility projects, and the weight and dig depth suit medium-scale earthworks, foundations, and drainage. The wheeled undercarriage provides mobility but requires attention to stability, especially on uneven ground. The buyer should consider tyre type and condition, as these affect traction and flotation.

Steering modes such as all-wheel steer can improve maneuverability in tight spaces, but the operator must understand the travel lock and axle oscillation controls. Stability can be reduced when working over the side, so check the load charts, monitor tyre pressure and wear, and confirm the braking system is adequate for road travel. Inspection should cover the engine for oil leaks, exhaust smoke, and starting behavior. The hydraulic system needs checking for leaks, unusual noises, and correct operation of all functions. Check pins and bushes in the boom, arm, and bucket for excessive play.

Examine wheel hubs and final drives for leaks and noise, and test the brakes, including the parking brake. Structural checks should focus on the main frame, boom, and axle mounts for cracks or repairs. Inspect tyres for cuts and wear, and verify the steering and travel lock systems. Shipping arrangements depend on dimensions and the destination port. With an operating weight between 15,300 and 17,500 kg, the machine may be shipped by container, flat rack, RoRo, or breakbulk.

The overall height and width determine whether a flat rack or breakbulk is required. For container shipment, disassembly may be necessary, but the wheeled undercarriage can ease loading. RoRo is an option when the machine can be driven onto the vessel, and the choice is influenced by the shipping line's rules, port facilities, and total dimensions after preparation.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Caterpillar CAT M317D2 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Caterpillar CAT M317D2 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Caterpillar CAT M317D2 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
