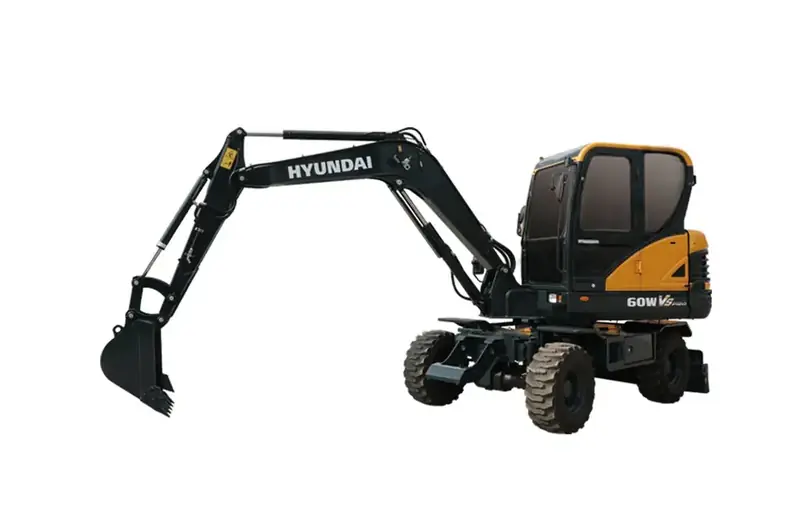

Hyundai R60WVS
Used Hyundai R60WVS wheeled excavator — reference specifications, condition points and export notes for this model.
The Hyundai R60WVS is a wheeled digging excavator weighing 5520kg with 40.5 kw / 2,400 rpm rated power from a Yanmar 4TNV98-E engine. Travel speed is 30km/h and maximum dig depth 3,500mm, suiting light trenching and utility work.
Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.
Reference specifications
| Operating weight | 5520kg |
|---|---|
| Rated power | 40.5 kw / 2,400 rpm |
| Engine | 洋马4TNV98-E |
| Travel speed | 30km/h |
| Max dig depth | 3,500mm |
Buying brief: Hyundai R60WVS
The Hyundai R60WVS is a wheeled digging excavator in the compact class under 8 tonnes, with an operating weight of 5,520 kg and a rated power of 40.5 kW at 2,400 rpm from its Yanmar 4TNV98-E engine. A maximum dig depth of 3,500 mm suits utility trenching, drainage, landscaping and small foundations. Travel speed of 30 km/h lets the machine move between jobs under its own power, reducing reliance on a transporter for short distances. The buyer should treat it as a compact utility unit with defined limits rather than a heavy earthmoving tool, and match it to the work and ground conditions expected. The wheeled undercarriage shapes how this class behaves on site.
Travel speed allows movement between locations without a transporter for short distances, and four wheels steer and reposition quickly on firm ground. The buyer should weigh stability on slopes and soft surfaces, tyre type and condition, steering mode, and whether a travel lock is fitted for digging. Attachments such as buckets, breakers and grabs alter balance and hydraulic demand. Ground conditions and the mix of tasks should be matched to the machine before purchase, since a compact wheeled unit favours firm surfaces and frequent moves over sustained work on soft ground. Inspection should begin with the engine, checking for smoke, unusual noise, oil leaks and coolant condition, and continue with the hydraulic system, looking at pump noise, cylinder seepage, hose condition and tank contamination.
Check pins and bushes at the boom, arm and bucket for play, and examine wheel hubs, bearings and rims for wear or damage. Test the brakes and steering on level ground, and inspect the main frame and boom for cracks or prior repairs. Electrical and cooling systems deserve attention. Maintenance records help, but a hands-on inspection by a competent technician remains the deciding step before payment. Shipping method depends on the unit's real dimensions and the destination port.
A 5.5 tonne compact wheeled excavator often travels in a container where dimensions allow, with the machine prepared and secured; larger or wider units may need a flat rack, RoRo service or breakbulk vessel. The deciding factors are overall length, width and height, weight, and the lifting and ramp facilities at the port of discharge. Confirm measurements before booking, agree the loading method with the forwarder, and check that the destination port can handle the chosen option.
Common questions
Is a used Hyundai R60WVS available right now?
What does a used Hyundai R60WVS cost?
How is a Hyundai R60WVS shipped from China?
