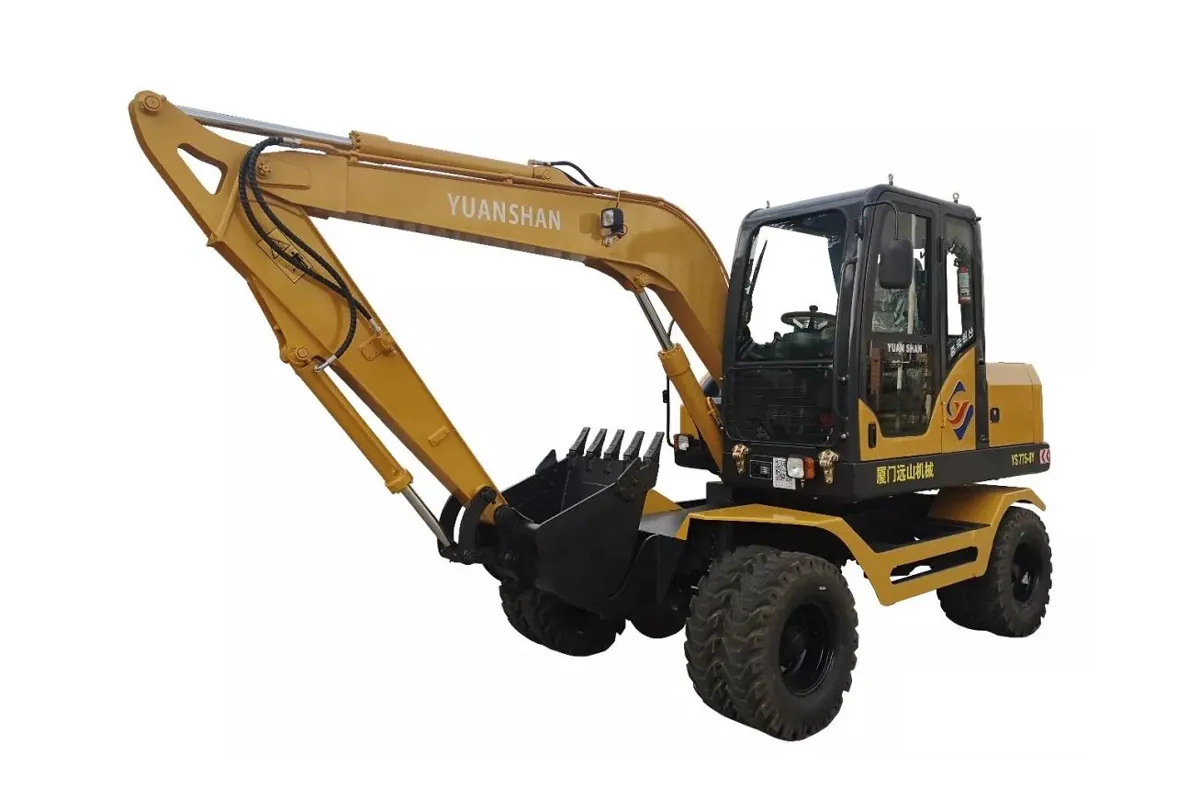

Yuanshan YS775-9N

Used Yuanshan YS775-9N wheeled excavator — reference specifications, condition points and export notes for this model.

The Yuanshan YS775-9N is a wheeled digging excavator weighing 6300kg with a 0.27m bucket. Rated power is 48kw at 2200rpm, travel speed is 32km/h and maximum dig depth is 3320mm. It suits trenching, landscaping and utility work.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Yuanshan YS775-9N
Operating weight	6300Kg
Bucket capacity	0.27m
Rated power	48Kw/2200rpm
Engine	48Kw/2200rpm
Travel speed	32km/h
Max dig depth	3320mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Yuanshan YS775-9N

Yuanshan YS775-9N handles trenching, utility work and light site preparation where road travel between jobs is needed. With a 0.27m bucket capacity and 3320mm max dig depth, it suits shallow to medium excavation rather than bulk earthmoving. The 48Kw/2200rpm engine rating indicates a power unit matched to steady loads. Travel speed of 32km/h supports self-propelled transfer on suitable roads, reducing carrier dependence. The class is a compact wheeled excavator, balancing reach with maneuverability in confined spaces. At 6300Kg operating weight, transport can often use a standard trailer, but confirm dimensions as configured.

The weight aids stability during digging, yet outriggers or a blade are needed for safe lifting and trenching; verify their presence. Lower weight helps on soft ground, but wheeled machines can lose traction on slopes. Travel speed of 32km/h is a guide only; tire condition and load affect real-world results. Plan road moves with attention to local rules for self-propelled machines. Inspection should focus on the engine at 2200rpm for smooth running and exhaust color. Test hydraulic functions through full cycles, watching for drift and unusual noise.

Check the bucket and linkage for cracks and wear. Examine wheel hubs, steering and brakes. Look at the frame and boom for previous repairs. Verify that 3320mm max dig depth is achievable without hose or linkage interference. Record tire condition and any missing guards or safety devices. Shipping preparation includes retracting the attachment and securing the upper structure.

Confirm dimensions after folding, as these affect loading. Disconnect the battery and follow rules for fuel and fluids. Provide sound tie-down points and verify them. The 6300Kg weight and 0.27m bucket capacity help estimate loading needs. Final plan should match the carrier's requirements and the measured weight and dimensions. Remove or secure loose items before transport.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Yuanshan YS775-9N available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Yuanshan YS775-9N cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Yuanshan YS775-9N shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
