Yuanshan YS775-8

Used Yuanshan YS775-8 wheeled excavator — reference specifications, condition points and export notes for this model.

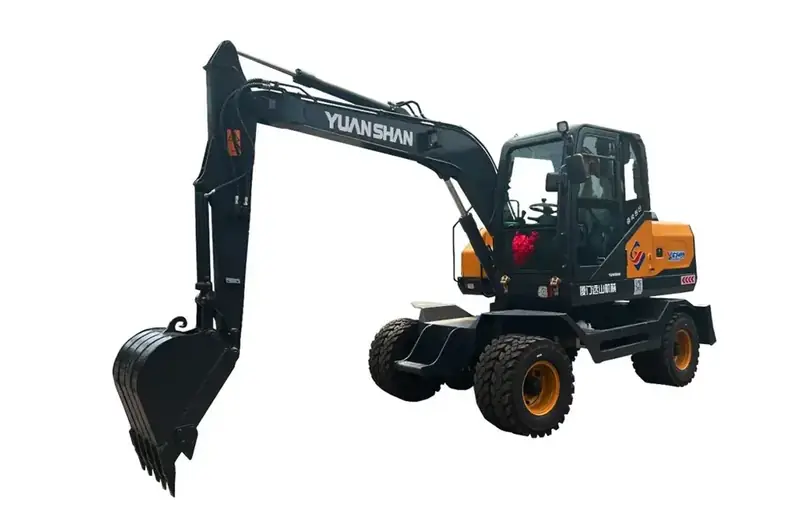

The Yuanshan YS775-8 is a wheeled digging excavator supplied with a stone grapple, weighing 6250kg with a 0.27m3 bucket. Rated power is 50kw at 2350rpm, travel speed is 32km/h and maximum dig depth is 3320mm. It suits trenching and material handling work.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Yuanshan YS775-8
Operating weight	6250Kg
Bucket capacity	0.27m³
Rated power	50Kw/2350rpm
Engine	50Kw/2350rpm
Travel speed	32km/h
Max dig depth	3320mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Yuanshan YS775-8

The YS775-8 is a wheeled digging excavator with an operating weight of 6250 kg, a bucket capacity of 0.27 m3, and a rated power of 50 kW at 2350 rpm. This model is suited to small-scale construction, utility maintenance, and landscaping tasks where the machine needs to travel by road. The wheeled undercarriage supports speeds up to 32 km/h, reducing transport requirements. The combination of weight, power, and bucket size makes it appropriate for light to medium digging, trenching, and material handling in confined or urban areas. On site, the wheeled undercarriage offers mobility but requires careful attention to stability, especially on slopes or soft ground.

Tyre condition, steering play, and the use of a travel lock or stabilisers are important for safe digging. Buyers should consider the machine's turning radius, braking performance, and attachment compatibility. The travel speed is useful for moving between jobs, but ground conditions and load limits must be respected. Regular checks of the undercarriage and hydraulic systems support reliable operation. Inspection should cover the engine for oil leaks, smoke, and power consistency, and the hydraulic system for pump noise, valve operation, and cylinder condition.

Pins and bushes on the boom, arm, and bucket should be checked for wear and grease. Wheel hubs, bearings, and brakes need close examination. Structural checks should include the chassis, kingpost, and attachment mounting points for cracks or repairs. A functional test and maintenance records help confirm the machine's condition. Shipping this model typically uses a flat rack or RoRo vessel, as its dimensions and weight may not suit standard containers without disassembly.

The loading method depends on the unit's real dimensions, the destination port's facilities, and shipping line requirements. Buyers should obtain accurate measurements and discuss lifting and securing with the carrier. Port handling capabilities and transport regulations also influence the choice between container, flat rack, RoRo, or breakbulk.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Yuanshan YS775-8 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Yuanshan YS775-8 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Yuanshan YS775-8 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
