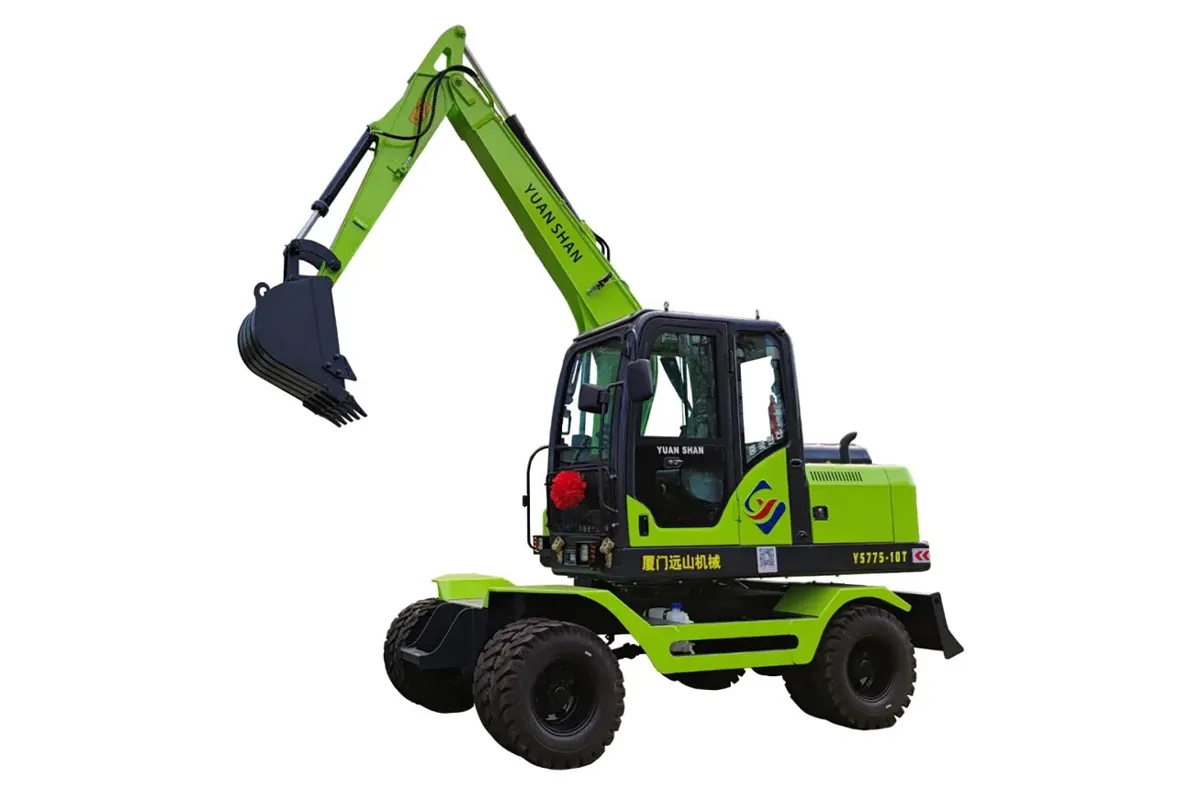

Yuanshan YS135

Used Yuanshan YS135 wheeled excavator — reference specifications, condition points and export notes for this model.

The Yuanshan YS135 is a wheeled digging excavator weighing 11500kg with a 0.37m3 bucket. Rated power is 103kw at 2200rpm, travel speed is 32km/h and maximum dig depth is 4400mm. It suits medium earthmoving, trenching and utility work.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

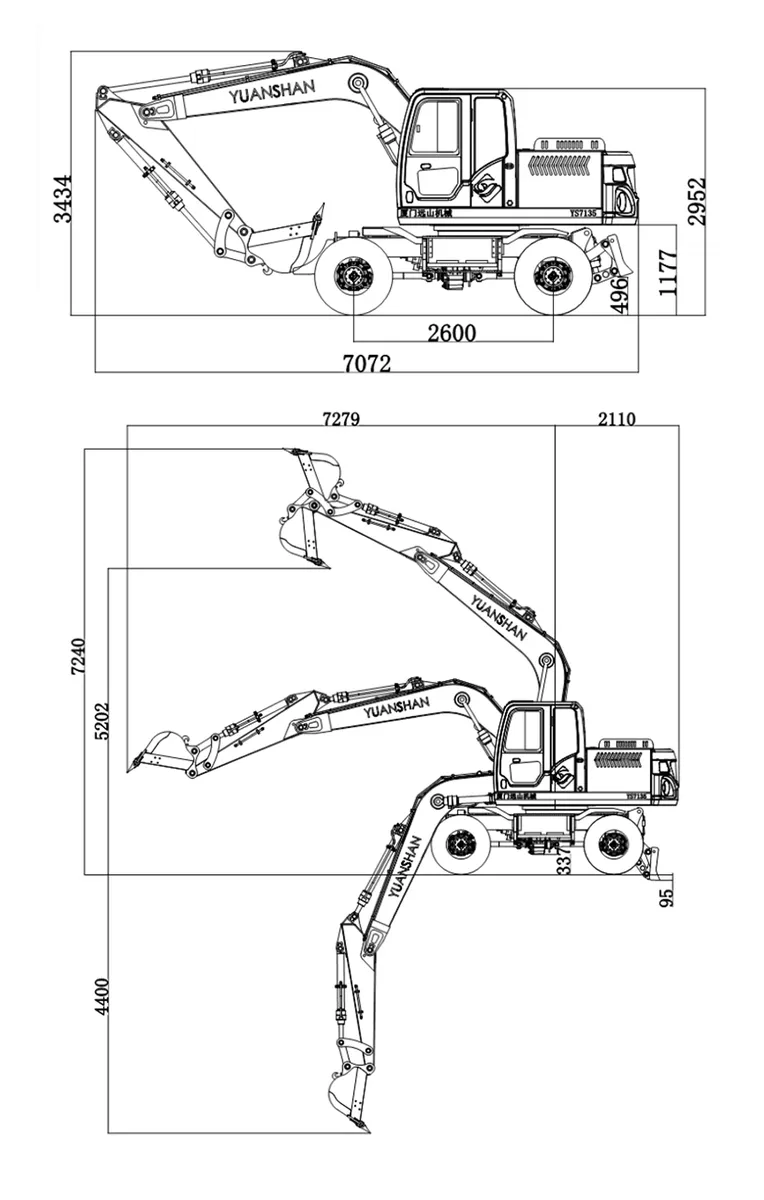

Reference specifications

Reference specifications for Yuanshan YS135
Operating weight	11500Kg
Bucket capacity	0.37m³
Rated power	103Kw/2200rpm
Engine	103Kw/2200rpm
Travel speed	32km/h
Max dig depth	4400mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Yuanshan YS135

The YS135 is a wheeled digging excavator with an operating weight of 11500 kg, a bucket capacity of 0.37 m3, and a rated power of 103 kW at 2200 rpm. This class suits utility work, road maintenance, trenching, and general construction where the machine must travel between sites on its own wheels. The combination of weight and power gives it capacity for moderate excavation and lifting tasks, while the wheeled undercarriage allows road travel at speeds up to 32 km/h. It is typically chosen for projects that require frequent repositioning rather than continuous heavy digging. On site, the wheeled undercarriage provides mobility and faster travel between locations compared with tracked machines, but stability depends on tyre condition, steering geometry, and the use of a travel lock or outriggers when digging.

Buyers should weigh the trade-off between mobility and flotation, check tyre wear and pressure, and confirm that steering and braking systems are suited to road use. The attachment setup, including quick coupler and auxiliary hydraulics, affects versatility. Ground conditions and slope also influence safe operation, so the travel lock and stability features deserve attention. Before paying, inspect the engine for leaks, smoke, and smooth acceleration, and check the hydraulic system for pump noise, cylinder seals, and hose condition. Pins and bushes on the boom, arm, and bucket should be checked for play and grease retention.

Wheel hubs, bearings, and brakes need close examination for wear or overheating. Structural checks should cover the chassis, kingpost, and attachment mounting points for cracks or repairs. Service records and a cold-start test help confirm condition. Shipping this size normally uses a flat rack, RoRo, or breakbulk vessel, because the unit's dimensions and weight often exceed simple container limits. The loading method depends on the real dimensions, destination port facilities, and whether the machine can be driven or must be lifted.

For container shipment, the unit may need partial disassembly, but the decision rests on actual measurements. Buyers should confirm lifting points, securing arrangements, and port handling capabilities before booking.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Yuanshan YS135 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Yuanshan YS135 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Yuanshan YS135 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
