Yuanshan YS128

Used Yuanshan YS128 wheeled excavator — reference specifications, condition points and export notes for this model.

The Yuanshan YS128 is a wheeled digging excavator weighing 9300kg with a 0.32m3 bucket. Rated power is 66kw at 2200rpm, travel speed is 30km/h and maximum dig depth is 3928mm. It suits medium trenching, landscaping and general site work.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Yuanshan YS128
Operating weight	9300Kg
Bucket capacity	0.32m³
Rated power	66Kw/2200rpm
Engine	66Kw/2200rpm
Travel speed	30km/h

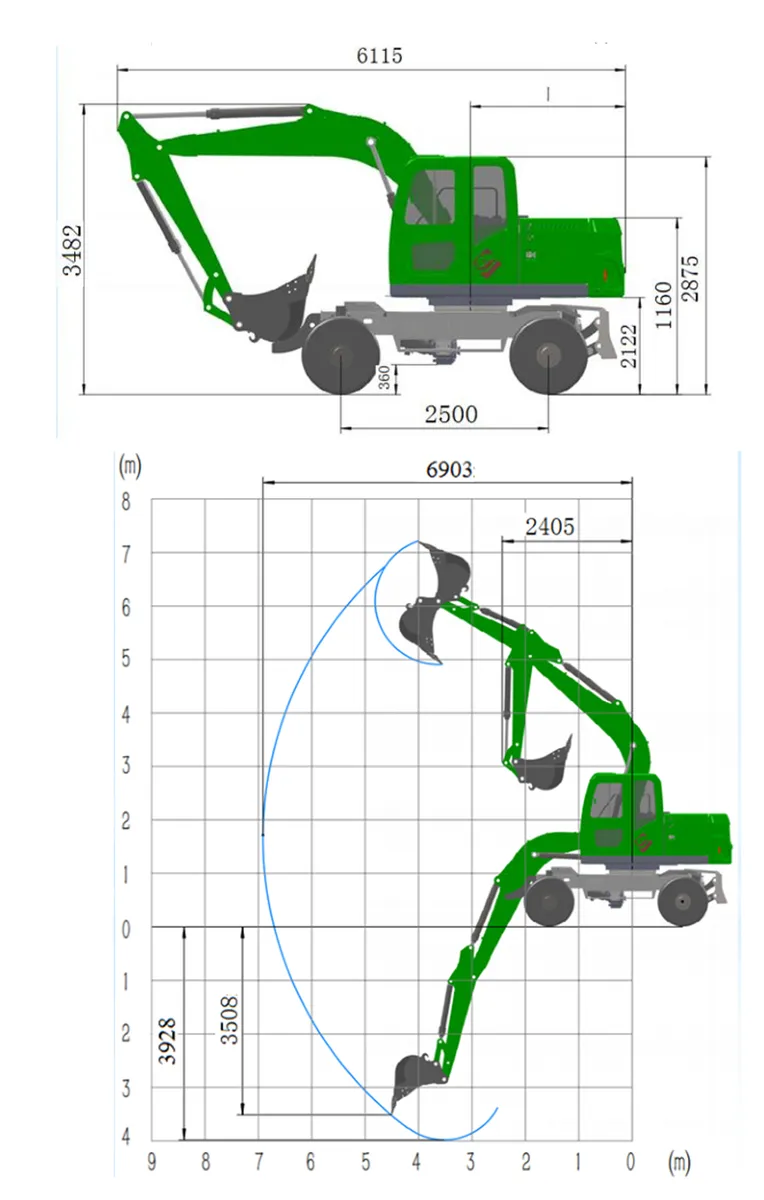

Max dig depth	3928mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Yuanshan YS128

The Yuanshan YS128 wheeled excavator is intended for general construction digging, road works, and drainage tasks where a mid-size machine can handle a 0.32m3 bucket. Its 66Kw/2200rpm engine and 9300Kg operating weight place it in the mid-range wheeled excavator class. Travel speed reaches 30km/h, so it can move between sites on public roads. The 3928mm maximum dig depth supports trenching and foundation work without repositioning too often.

The 9300Kg operating weight makes transport planning more demanding than for smaller units: axle loads and road permits may need review. That weight, combined with the 0.32m3 bucket, gives stability during digging and lifting, but the wheeled undercarriage still requires firm, level ground. A 3928mm dig depth means the front end carries leverage, so the operator should keep the machine on stable footing and use outriggers where available. The 30km/h travel speed is useful for short road moves.

Inspection should start with the wheeled undercarriage: tire condition, wheel bearing play, steering response, and brake performance under load. Check the 66Kw/2200rpm engine for leaks, smoke, and stable idle, and cycle the hydraulic system through the full 3928mm dig depth to listen for unusual noise. Inspect the boom, arm, and bucket linkage for cracks or poor repairs. Test swing and travel controls, and confirm the operator station and safety devices work as intended.

Shipping the YS128 requires attention to its 9300Kg weight and wheeled configuration. Secure the machine at designated tiedown points and confirm the parking brake holds on a slope. Neutralize or disengage the drive as required for transport, and protect hydraulic hoses and controls from weather. Provide the carrier with dimensions and weight from the catalogue data, and check that the bucket and any loose items are secured or removed before the journey.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Yuanshan YS128 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Yuanshan YS128 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Yuanshan YS128 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
