Xinyuan C80G4

Used Xinyuan C80G4 wheeled excavator — reference specifications, condition points and export notes for this model.

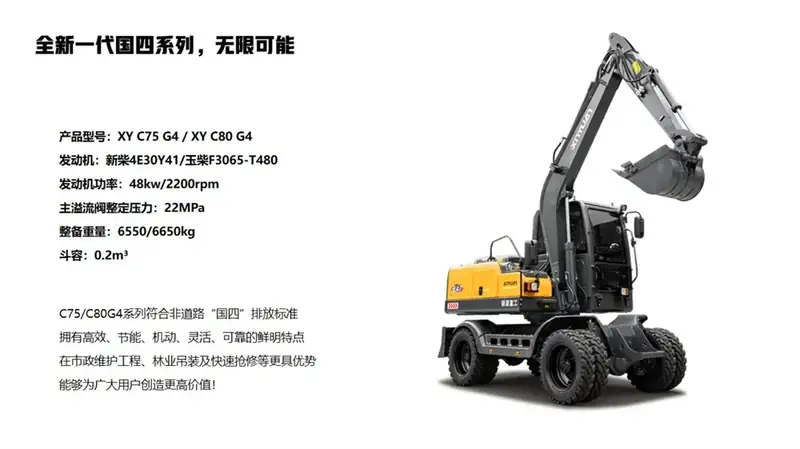

The Xinyuan C80G4 is a wheeled digging excavator weighing 6650kg with a 0.2m3 bucket. Engine options are the Xinchai 4E30 or Yuchai F30, rated 48kw at 2200rpm, with 30km/h travel speed and 3650mm maximum dig depth. It suits trenching and general site work.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Xinyuan C80G4
Operating weight	6650kg
Bucket capacity	0.2m³
Rated power	48kw/2200rpm

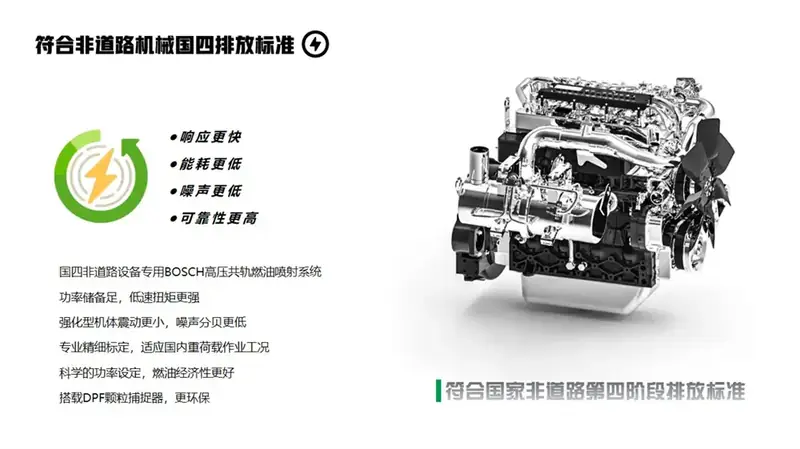

Engine	新柴4E30/玉柴F30
Travel speed	30km/h
Max dig depth	3650mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Xinyuan C80G4

The Xinyuan C80G4 is a compact wheeled digging excavator under 8 tonnes, meeting China IV emission standards, with an operating weight of 6650 kg, a bucket capacity of 0.2 m3 and a rated power of 48 kW at 2200 rpm. Engine options are the Xinchai 4E30 or Yuchai F30. Travel speed is 30 km/h and maximum dig depth is 3650 mm. This size suits utility, landscaping and light construction work where road travel between sites is an advantage. The class prioritises mobility and moderate digging duty.

Wheeled undercarriages offer fast repositioning and road travel but require the operator to manage stability, particularly when lifting or slewing with a load. Tyre condition and pressure affect grip and flotation, so these should be matched to the ground. Steering response and a functioning travel lock are practical checks. The buyer should weigh the convenience of 30 km/h travel against lower traction on soft or uneven ground, and consider attachment needs, confirming hydraulic flow and coupler compatibility before committing. Inspection should cover the engine for leaks, exhaust smoke and starting behaviour, and the hydraulics for hose wear, cylinder seepage and control response.

Pins and bushes at the boom, arm and bucket need checking for play, as does the swing bearing area. Wheel hubs should be examined for bearing noise and seal leaks, and brakes tested for even operation. Structural checks include welds on the boom and arm, the chassis and the kingpost for cracks or previous repairs. Shipping is typically by container, flat rack, RoRo or breakbulk, selected from the unit's real dimensions and the destination port. At 6650 kg and compact size, a 40-foot container or flat rack may be suitable once the machine is measured with attachments removed or folded.

RoRo is an option at ports with roll-on facilities and avoids lifting, while breakbulk may serve remote destinations. The buyer should confirm dimensions, lifting points and port handling before booking.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Xinyuan C80G4 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Xinyuan C80G4 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Xinyuan C80G4 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
