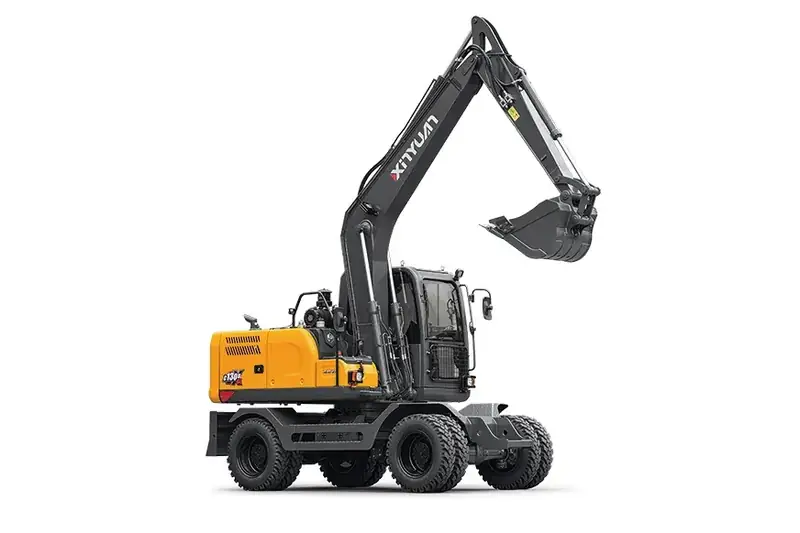

Xinyuan C120G4

Used Xinyuan C120G4 wheeled excavator — reference specifications, condition points and export notes for this model.

The Xinyuan C120G4 is a mid-size wheeled digging excavator in the China IV emissions class. This class suits general digging, trenching and loading duties, with a wheeled undercarriage for road travel between jobs. Operating weight is 8610 kg, bucket capacity 0.32 m3, rated power 74 kw at 2200 rpm, travel speed 30 km/h, and maximum dig depth 4315 mm.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Xinyuan C120G4
Operating weight	8610kg
Bucket capacity	0.32m³
Rated power	74kw/2200rpm
Engine	玉柴F36100-T480
Travel speed	30km/h
Max dig depth	4315mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Xinyuan C120G4

The Xinyuan C120G4 is a wheeled digging excavator in the 8-13 t class, meeting China IV emission standards. It has an operating weight of 8610 kg, a bucket capacity of 0.32 m3, and a rated power of 74 kW at 2200 rpm. The engine is a Yuchai F36100-T480, and travel speed reaches 30 km/h. With a maximum dig depth of 4315 mm, it handles deeper excavation. This model suits contractors needing a powerful, mobile machine with lower emissions for construction and utility work. On site, the wheeled undercarriage provides travel convenience but requires stability management.

Tyres should match ground conditions; pneumatic tyres are common. Steering and travel lock features are important for safe digging. The buyer should weigh the higher power against fuel consumption and consider the machine's width for access. Attachments can increase versatility, but ensure hydraulic capacity matches. The 8-13 t class offers a good balance of digging force and maneuverability for urban and suburban projects. Inspection should focus on the engine, particularly emission control components, for proper function.

Hydraulic systems need checks for leaks and smooth operation. Pins and bushes should be examined for wear, as should wheel hubs and brakes. Structural integrity of the boom, arm, and frame is crucial. Verify the travel lock and steering. Since it is a China IV model, ensure that the after-treatment system is intact and that diagnostic codes are clear. A thorough inspection by a qualified technician is recommended.

Shipping this 8610 kg wheeled excavator usually involves a container, flat rack, RoRo, or breakbulk vessel. The choice depends on the unit's dimensions and the destination port. A flat rack is common for machines of this size, allowing easy loading. RoRo is efficient for ports with suitable infrastructure, while breakbulk may be used elsewhere. Buyers should obtain exact dimensions to determine container feasibility and consult with logistics providers to plan the most cost-effective method.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Xinyuan C120G4 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Xinyuan C120G4 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Xinyuan C120G4 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
