Xinyuan C120

Used Xinyuan C120 wheeled excavator — reference specifications, condition points and export notes for this model.

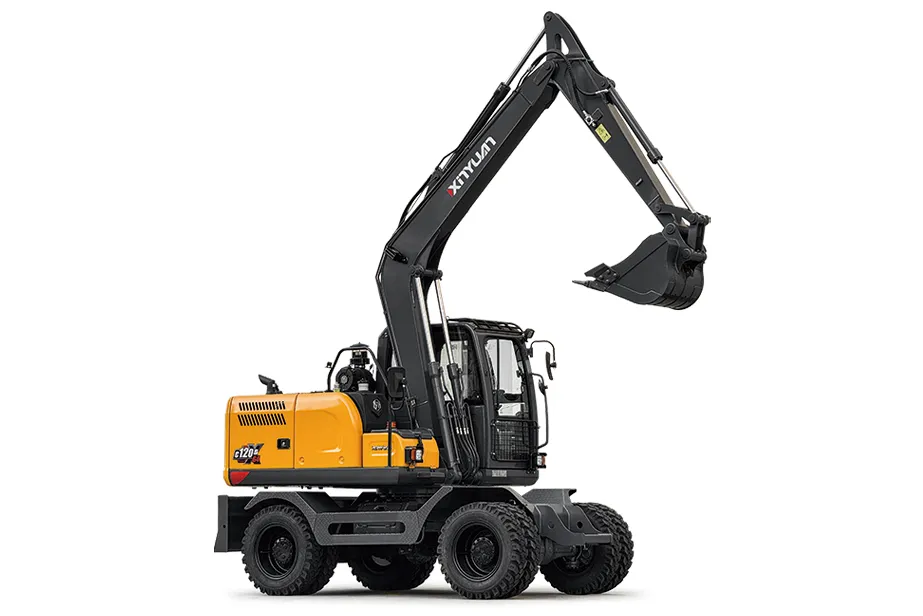

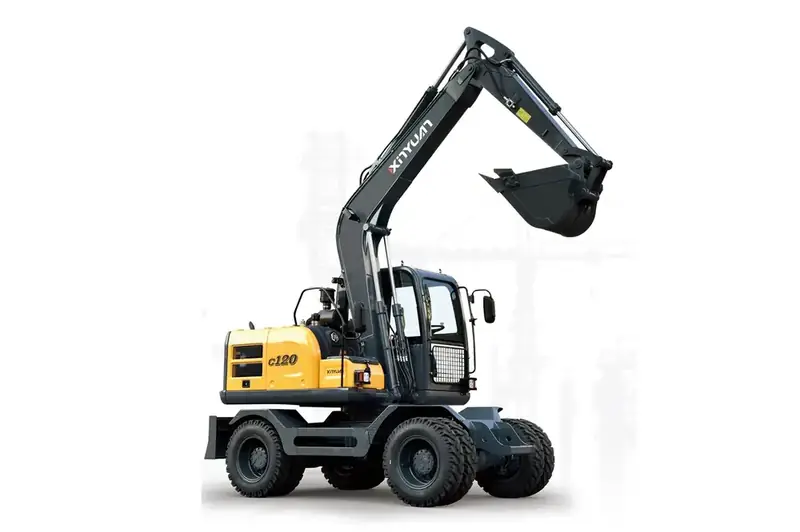

The Xinyuan C120 is a mid-size wheeled digging excavator. This class suits general digging, trenching and loading work, with a wheeled chassis for travel between sites. Operating weight is 8875 kg, bucket capacity 0.3 to 0.5 m3, rated power 73.5 kw at 2200 rpm, travel speed 31 km/h, and maximum dig depth 4075 mm.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Xinyuan C120
Operating weight	8875kg
Bucket capacity	0.3-0.5m³
Rated power	73.5KW/2200rpm
Engine	玉柴4DK
Travel speed	31km/h
Max dig depth	4075mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Xinyuan C120

The Xinyuan C120 is a wheeled digging excavator in the 8-13 t class, with an operating weight of 8875 kg, a bucket capacity of 0.3-0.5 m3, and a rated power of 73.5 kW at 2200 rpm. It uses a Yuchai 4DK engine and can travel at speeds up to 31 km/h. The maximum dig depth is 4075 mm. This model suits medium to heavy excavation tasks, including trenching, foundation work, and site preparation. Its wheeled design allows efficient travel between locations, making it suitable for contractors with multiple sites. The wheeled undercarriage offers good mobility but requires attention to stability, especially on slopes.

Tyre choice affects traction and road performance. Steering modes and a travel lock are important for safe operation. The buyer should consider the machine's weight and dimensions for transport and access. Attachments such as hydraulic breakers or compactors can increase versatility, but ensure the hydraulic system supports them. The 8-13 t class provides a balance of power and maneuverability for various applications. Inspection should cover the engine for leaks, smoke, and performance.

Hydraulic systems need checking for smooth operation and cylinder condition. Pins and bushes should be examined for excessive play. Wheel hubs require checking for leaks and bearing noise, and brakes should be tested. Structural integrity of the boom, arm, and frame is critical. Also verify the travel lock and steering. A thorough inspection helps avoid costly repairs after purchase.

Shipping this 8875 kg wheeled excavator typically uses a container, flat rack, RoRo, or breakbulk vessel. The method depends on the unit's dimensions and the destination port. A flat rack is common for machines of this size, allowing easy loading. RoRo is suitable for ports with roll-on/roll-off facilities, while breakbulk may be used for others. Buyers should confirm dimensions with the supplier and consult a freight forwarder to determine the most efficient shipping method.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Xinyuan C120 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Xinyuan C120 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Xinyuan C120 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
