Xinyuan C105

Used Xinyuan C105 wheeled excavator — reference specifications, condition points and export notes for this model.

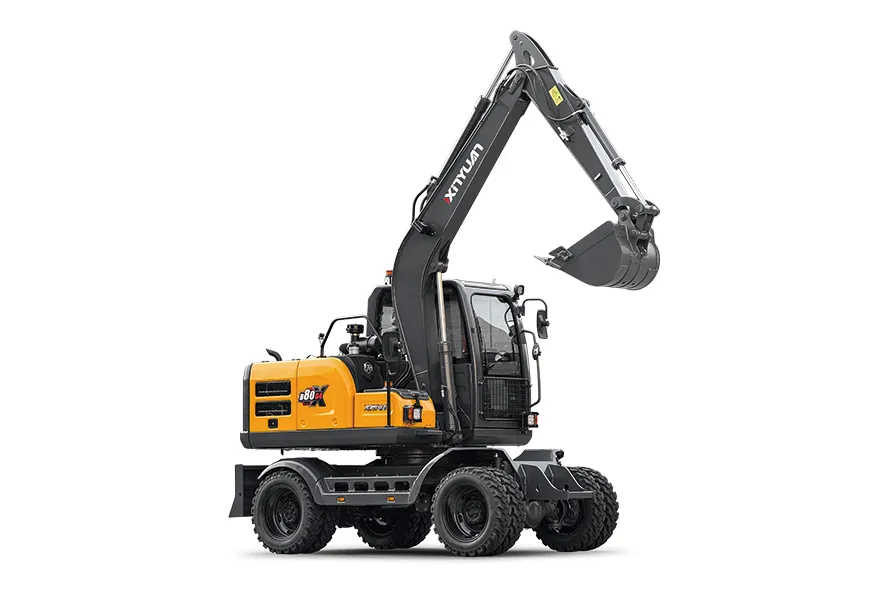

The Xinyuan C105 is a mid-size wheeled digging excavator. This class suits general digging, trenching and loading work on construction and utility sites, with a wheeled chassis for road travel between jobs. Operating weight is 8300 kg, bucket capacity 0.3 to 0.45 m3, rated power 56 kw at 2200 rpm, travel speed 30 km/h, and maximum dig depth 3980 mm.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Xinyuan C105
Operating weight	8300kg
Bucket capacity	0.3-0.45m³
Rated power	56KW/2200rpm
Engine	玉柴4DK
Travel speed	30km/h
Max dig depth	3980mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Xinyuan C105

The Xinyuan C105 is a wheeled digging excavator in the 8-13 t class, with an operating weight of 8300 kg, a bucket capacity of 0.3-0.45 m3, and a rated power of 56 kW at 2200 rpm. It is powered by a Yuchai 4DK engine and can travel at speeds up to 30 km/h. This size suits medium-duty excavation, trenching, and site preparation where road travel is beneficial. The maximum dig depth of 3980 mm allows for deeper work than compact models. It is a practical choice for contractors needing a balance of power and mobility. The wheeled undercarriage provides good on-road speed and off-road capability, but stability can be affected by terrain.

Tyre selection is important; pneumatic tyres are common for mixed use. Steering modes enhance maneuverability, and a travel lock is essential for safe digging. The buyer should consider the machine's footprint and weight distribution when planning lifts and transport. Attachments such as breakers or augers can extend versatility, but may require additional hydraulic circuits. Overall, the wheeled design reduces travel time between jobs. Before purchase, inspect the engine for leaks, smoke, and performance.

Check the hydraulic system for responsive controls and cylinder integrity. Pins and bushes should be examined for looseness, which indicates wear. Wheel hubs need checking for leaks and bearing noise, and brakes should be tested. Structural components like the boom, arm, and frame should be free of cracks or repairs. Also verify the travel lock, steering, and safety features. A thorough inspection helps identify potential issues.

Shipping this 8300 kg wheeled excavator typically involves a container, flat rack, RoRo, or breakbulk vessel. The method depends on the unit's dimensions and the destination port's facilities. A 20-foot container may be possible if the machine is partially disassembled, but a flat rack is often used for easier loading. RoRo is suitable for ports with roll-on/roll-off capability, while breakbulk may be chosen for others. Buyers should confirm dimensions and weight with the supplier and consult a freight forwarder to select the most efficient option.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Xinyuan C105 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Xinyuan C105 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Xinyuan C105 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
