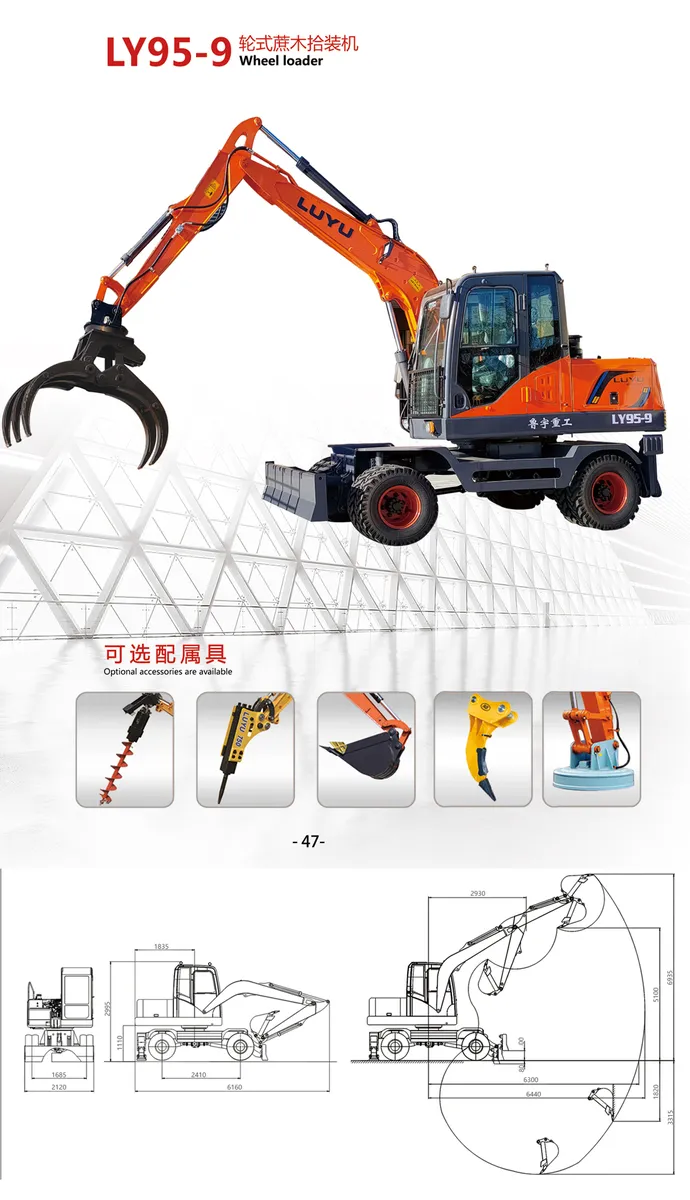

Luyu LY95-9

Used Luyu LY95-9 wheeled excavator — reference specifications, condition points and export notes for this model.

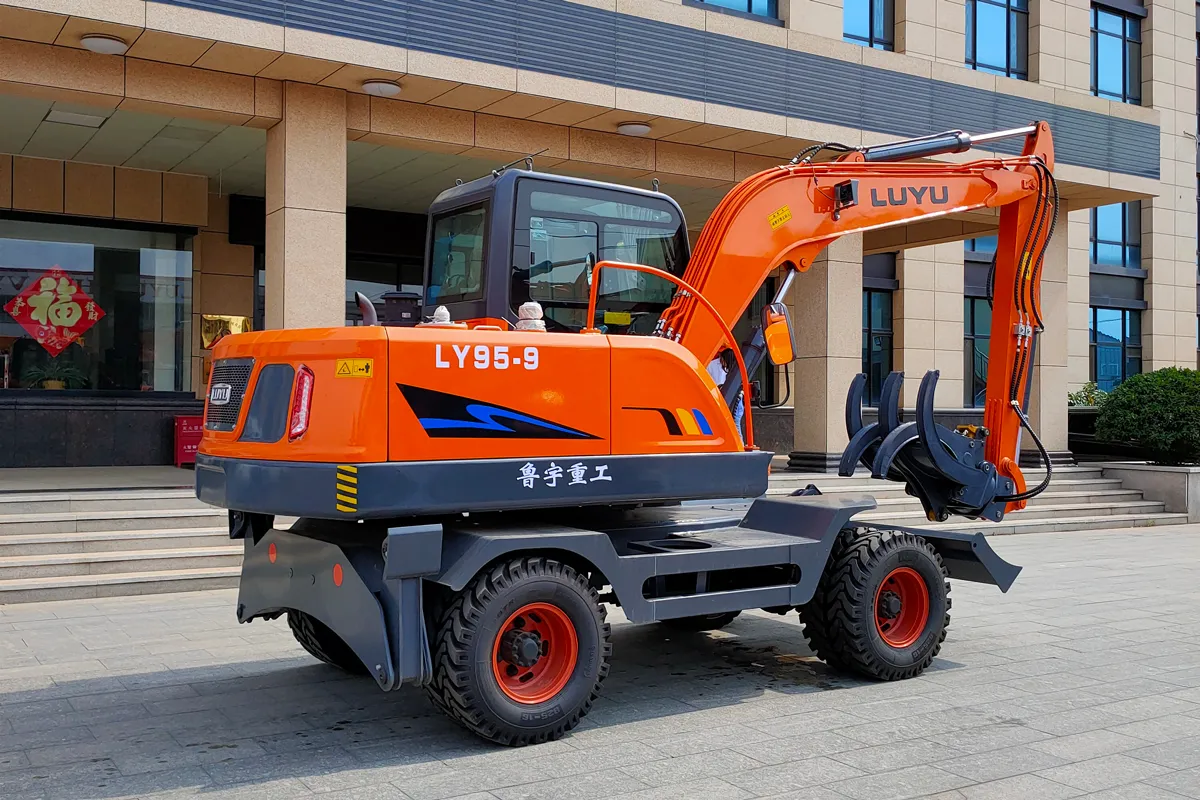

The Luyu LY95-9 is a wheeled material handler with grab or grapple capability for handling tasks. It weighs 8200 kg, carries a 0.32 m3 bucket, runs a 55 kW YC4FA-75 engine at 2200 rpm, travels 0-35 km/h and reaches a 3850 mm maximum dig depth.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Luyu LY95-9
Operating weight	8200KG
Bucket capacity	0.32m³
Rated power	55KW/2200r
Engine	YC4FA-75
Travel speed	0-35KM/h
Max dig depth	3850mm

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Luyu LY95-9

The Luyu LY95-9 carries an operating weight of 8200 kg and a 0.32 m3 bucket, powered by a 55 kW engine at 2200 rpm. This class suits utility trenching, road maintenance, and light site clearance where a compact wheeled unit is preferred. The 3850 mm dig depth covers most service trenches and footing work without repositioning often. Its 0-35 km/h travel speed lets it move between jobs under its own power. The wheeled undercarriage on the LY95-9 behaves well on firm ground and paved surfaces, with a steering arrangement that allows tight turns in confined areas.

Travel speed up to 35 km/h reduces the need for a transporter on short moves. Expect stable digging when the machine is level and the outriggers, if fitted, are deployed. On soft or uneven ground, traction and stability fall, so plan the work area accordingly. Before paying, inspect the undercarriage for wear on wheel hubs, steering linkages, and axle seals. Check the engine for leaks and listen for unusual noise at rated speed.

Test the hydraulic system through a full dig cycle, watching for drift in the boom and bucket. Verify the swing and travel controls respond smoothly. Look at the structural welds on the boom and dipper for cracks, and confirm the tyres hold pressure and show even wear. Shipping this size uses a flat rack or step-deck trailer rather than a standard container. The 8200 kg operating weight and wheeled format allow it to be driven onto a trailer or ramp if the engine runs.

Secure the machine by the chassis, not the wheels, and lower the boom fully. Remove or fold any attachments that exceed width limits. Confirm tie-down points and brake release procedure with the carrier before loading.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Luyu LY95-9 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Luyu LY95-9 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Luyu LY95-9 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
