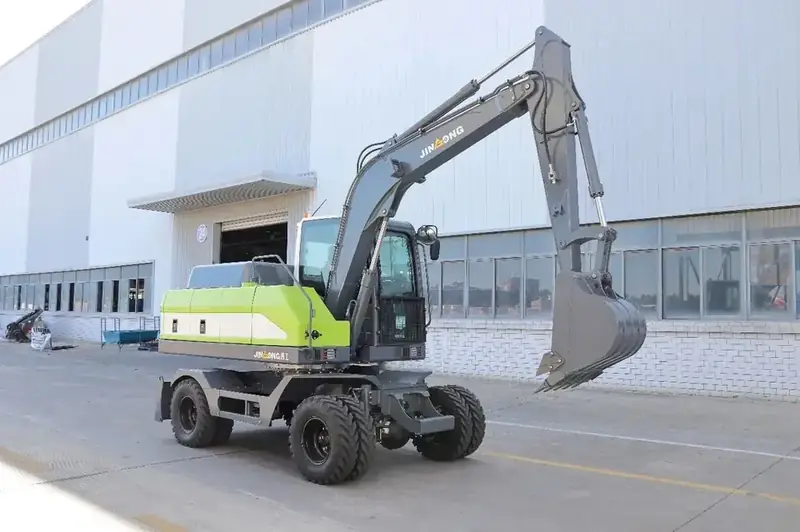

Jingong (JGM) JGM9075M-10

Used Jingong (JGM) JGM9075M-10 wheeled excavator — reference specifications, condition points and export notes for this model.

The Jingong (JGM) JGM9075M-10 is a wheeled digging excavator. It suits trenching, utility work and general site excavation where a wheeled undercarriage allows travel between jobs. Operating weight, bucket capacity, engine and dig depth are not listed for this model, so confirm specifications before selection.

Description is a class-level reference built from the published specifications above; the exact unit's year, hours and condition are confirmed before payment.

Reference specifications

Reference specifications for Jingong (JGM) JGM9075M-10
Specifications to be confirmed per unit.

Values are a public reference for this model. Confirm the exact unit's year, hours, condition and attachments before purchase.

Buying brief: Jingong (JGM) JGM9075M-10

This entry is a wheeled digging excavator in the compact class under 8 t, built for utility work, road maintenance and light trenching where the machine must move between sites on its own wheels. Operating weight is 6290 kg, bucket capacity 0.3 m3 and rated power 48 kW at 2300 rpm, with travel speed up to 30 km/h and a maximum dig depth of 3570 mm. This size suits contractors who need a digging tool that can travel on public roads without a low-bed trailer and still handle modest excavation, loading and grading tasks with a 0.3 m3 bucket. The four-wheel undercarriage gives this class good mobility and a tighter turning circle than a tracked machine, but the buyer should weigh stability against travel speed.

Tyres and their condition affect traction and flotation on soft ground, while steering mode and a working travel lock matter for safe road movement. Attachment choice is limited by the 0.3 m3 bucket and the machine's hydraulic flow, so confirm the intended hammer or grab is within the carrier's capacity. Ground bearing pressure and wheel load distribution should be checked for the surfaces the machine will cross. Before paying, inspect the engine for smoke, oil leaks and coolant condition, and check the hydraulic system for pump noise, cylinder scoring and hose condition.

Pins and bushes at the boom, arm and bucket should be checked for play, since wear here affects accuracy and cost. Wheel hubs, bearings and brakes need attention on a wheeled machine, as do the steering linkages and the travel lock. Look at the frame and articulation area for cracks or repairs, and confirm the electrical and cooling systems function. Shipping this class normally uses a container where dimensions allow, a flat rack for over-height or over-width units, or RoRo and breakbulk for ports that handle wheeled cargo.

The decision rests on the unit's real dimensions, especially height with the boom folded and width over the tyres, plus the destination port's facilities and the shipping line's rules. Because the machine can travel under its own power, RoRo is often practical, but the final method is set by measured dimensions and the route, not by the model name.

A class-level brief: it describes this size of machine and what to check. It is not a statement of availability or price for any specific unit.

Ask about this model↗Export & shipping

Common questions

Is a used Jingong (JGM) JGM9075M-10 available right now?

Availability changes with stock. Send us the model and destination and we confirm the units currently on hand or that can be sourced.

What does a used Jingong (JGM) JGM9075M-10 cost?

Price depends on year, working hours, condition, attachments and destination. We quote per unit, FOB China or CIF your port, after confirming the exact machine.

How is a Jingong (JGM) JGM9075M-10 shipped from China?

Usually by container, flat rack, RoRo or breakbulk, chosen by the unit's real dimensions and your destination port. We plan loading before the balance payment.
